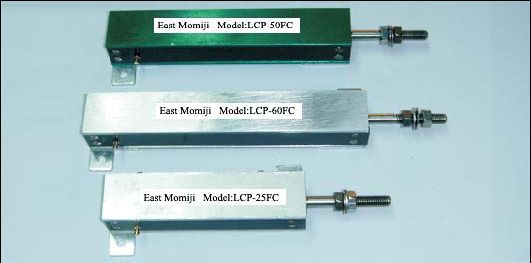

LCP-FC

Download the Specification:      Download Acrobat Reader:

PRODUCT  FEATURES

  • Linear Sensing Distance:25~60mm;
  • Back Spring Available;
  • Light Weight & Small Operating Friction.

ELECTRICAL  CHARACTERISTICS

MODEL
LCP-25FC
LCP-50FC
LCP-60FC
Effective Electrical Travel
25mm
50mm
60mm
Total Resistance Value
1、2KΩ
1、2、5KΩ
Total Resistance Tolerance
±20%
Independent Linearity
±1% (±0.5% Precision)
±0.5% (±0.2% Precision)
Power Rating
0.8W/70℃
1.5W/70°
1.5W/70℃
2.5W/70°
3W/70°
4W/70°
Output Smoothness
0.1% Max
Insulation Resistance
Max 100MΩ At DC500V
Dielectric Strength
AC500V For 1 Minute
Resistance Of Temperature Coefficient
±500ppm/℃






















MECHANICAL  CHARACTERISTICS

MODEL
LCP-25FC
LCP-50FC
LCP-60FC
Mechanical Travel
30.00mm
55.00mm
65.00mm
Operating Force
49×10-2N   (50gf) Max
Weight
About 85g
About 100g
About 120g









ENVIRONMENTAL  CHARACTERISTICS

Operating Temperature Range
－40～100℃
Vibration
98m/s2（10G）500Hz
Shock
490m/s2（50G）11ms
Life Cycle
5 million cycles
