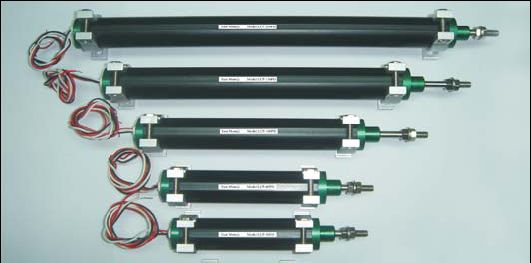

LCP-FD

Download the Specification:      Download Acrobat Reader:

PRODUCT  FEATURES

  • Linear Sensing Distance:30~200mm;
  • Using Aluminum Alloy Materials;
  • Light Weight & Small Operating Friction.

ELECTRICAL  CHARACTERISTICS

MODEL
LCP-30FD
LCP-50FD
LCP-60FD
LCP-100FD
LCP-150FD
LCP-200FD
Effective Electrical Travel

30mm
50mm
60mm
100mm
150mm
200mm
Total Resistance Value
1、2、5KΩ
1、2、5KΩ
1、2、5KΩ
1、2、5KΩ
1、2、5KΩ
1、2、5、10KΩ
Total Resistance Tolerance
±20%
Independent Linearity
±0.5% (±0.1%)
Power Rating
1.5W/70°
1.5W/70°
1.5W/70°
2.5W/70°
3W/70°
4W/70°
Output Smoothness
0.1% Max
Insulation Resistance
Max 100MΩ At DC500V
Dielectric Strength
AC500V For 1 Minute
Resistance Of Temperature Coefficient
±500ppm/℃
