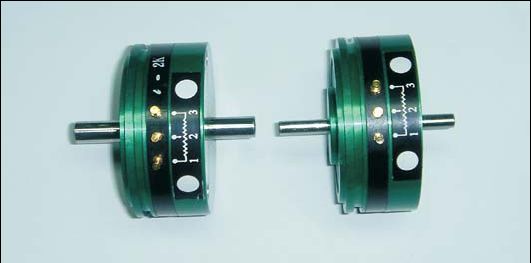

RCP-45FB

Download the Specification:      Download Acrobat Reader:

  • 360°Non-stop Rotation;
  • Built-in Ball Bearing;
  • Light Weight,Low Cost,Suitable for Servo Mounting;
  • Tailor-made Specification Wellcome.

    ELECTRICAL  CHARACTERISTICS

    Effective Electrical Angle
    350°
    Total Resistance Value
    0.5、1、2、5、10kΩ
    Total Resistance Tolerance
    ±20%
    Independent Linearity
    ±0.5%  (±0.1% Precision)
    Power Rating
    3W/70℃
    Output Smoothness
    0.1% Max
    Insulation Resistance
    Max 100MΩ At DC1000V
    Dielectric Strength
    AC1000V  For 1 Minute
    Resistance Of Temperature Coefficient
    ±500ppm/℃

    MECHANICAL  CHARACTERISTICS

    Mechanical Rotation Angle
    360°Non-stop
    Rotational Torque
    18×10-4N.m
    (18gf.cm) Max
    Weight
    About 60g

    ENVIRONMENTAL  CHARACTERISTICS

    Operating Temperature Range
    －40～120℃
    Vibration
    150m/s2（15G）2000Hz
    Shock
    490m/s2（50G）11ms
    Life Cycle
    10 Million Cycles




    		•
